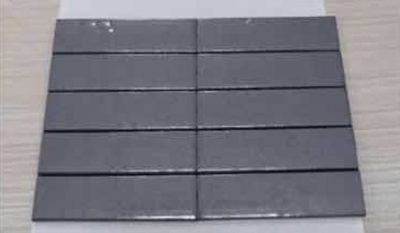

Graphite Foam
Our graphite foam is wrapped in flame-retardant PU foam with graphite film, options to have one side or both sides adhesive for your application. Graphite film is made of artificial graphite covered with PET film.
Typical Applications: Equipment cases, electrical appliances, industrial equipment, notebook computers, communications equipment, military.
Features and Benefits: Excellent adhesion, outstanding shielding effect.
Product |
Thermal Graphite Foam |
||
Typical Properties |
Unit |
Specification |
Test Method |
Thickness of graphite |
mm |
0.1±.02 |
ASTM D374 |
Density of graphite |
g/cc |
1.2 |
ASTM D792 |
Graphite foam thickness |
mm |
1~10 |
ASTM D374 |
Hardness level of foam |
Shore A |
75±10 |
ASTM D2240 |
Continuous use Temp. |
ºC |
-20 ~ +120 |
/ |
Thermal Conductivity(vertical direction) |
w/m-k |
5.0 |
ASTMD 5470 |
Thermal Conductivity |
w/m-k |
380 ~ 400 |
ASTMD 5470 |
